Part Number
|
Wheel Diameter
A
|
Total Width
B
|
Bore Size
C
|
Keyway Size
D
|
|
|---|---|---|---|---|---|
Steel/Rubber body
|
RBRRKA5 | 3-1/2" | 2-1/8" | 1" | 1/4" |
| RBRRKG5 | 3-1/2" | 2-1/8" | 1-3/16" | 1/4" | |

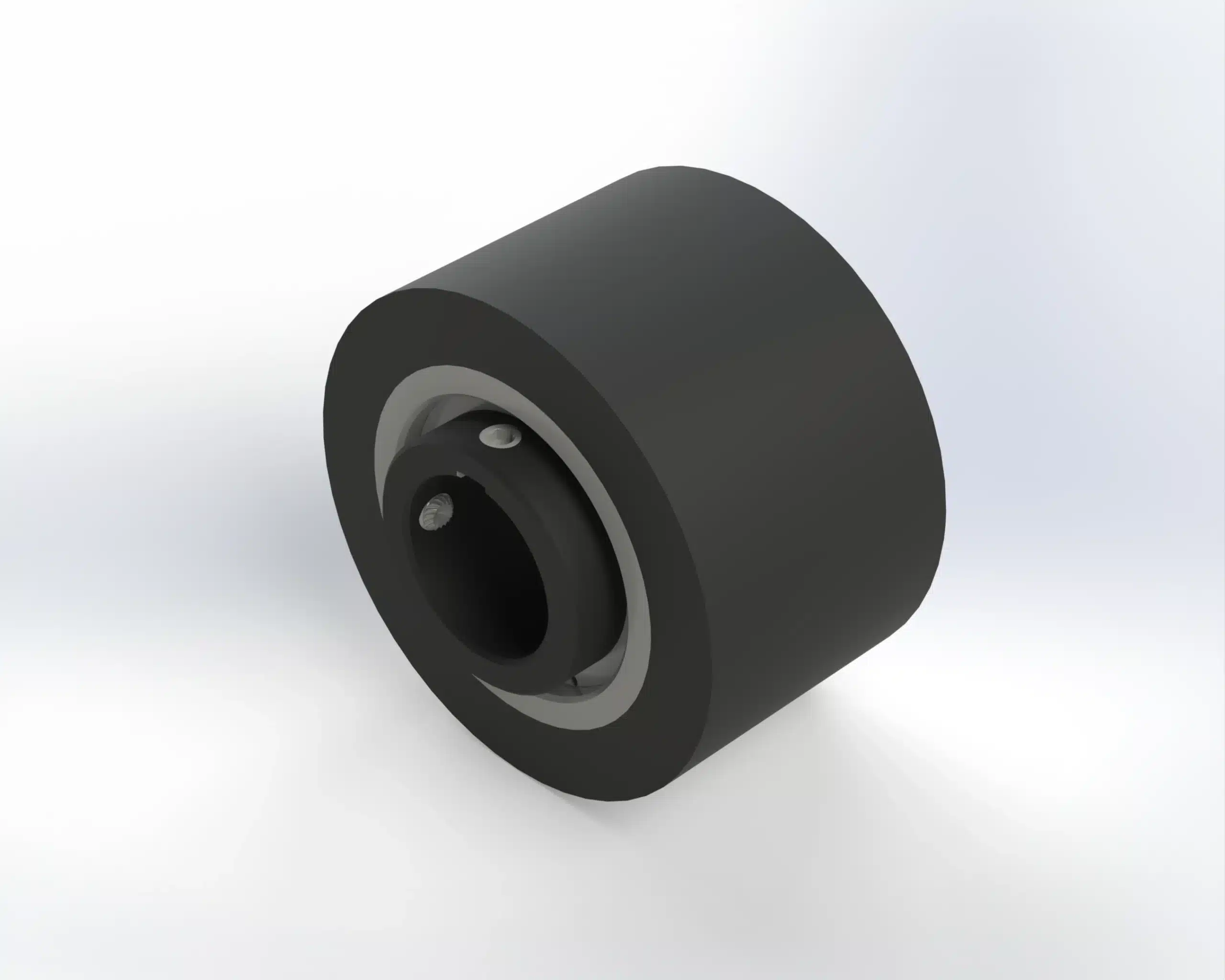

| RBRRKB5 | 3-1/2" | 2-1/8" | 1-1/4" | 1-4" | |
| RBRRKC6 | 3-1/2" | 2-1/8" | 1-3/8" | 5/16" | |
| RBRRKH4 | 3-1/2" | 2-1/8" | 1-7/16" | 3/8" | |
Steel/Rubber body/Split
|

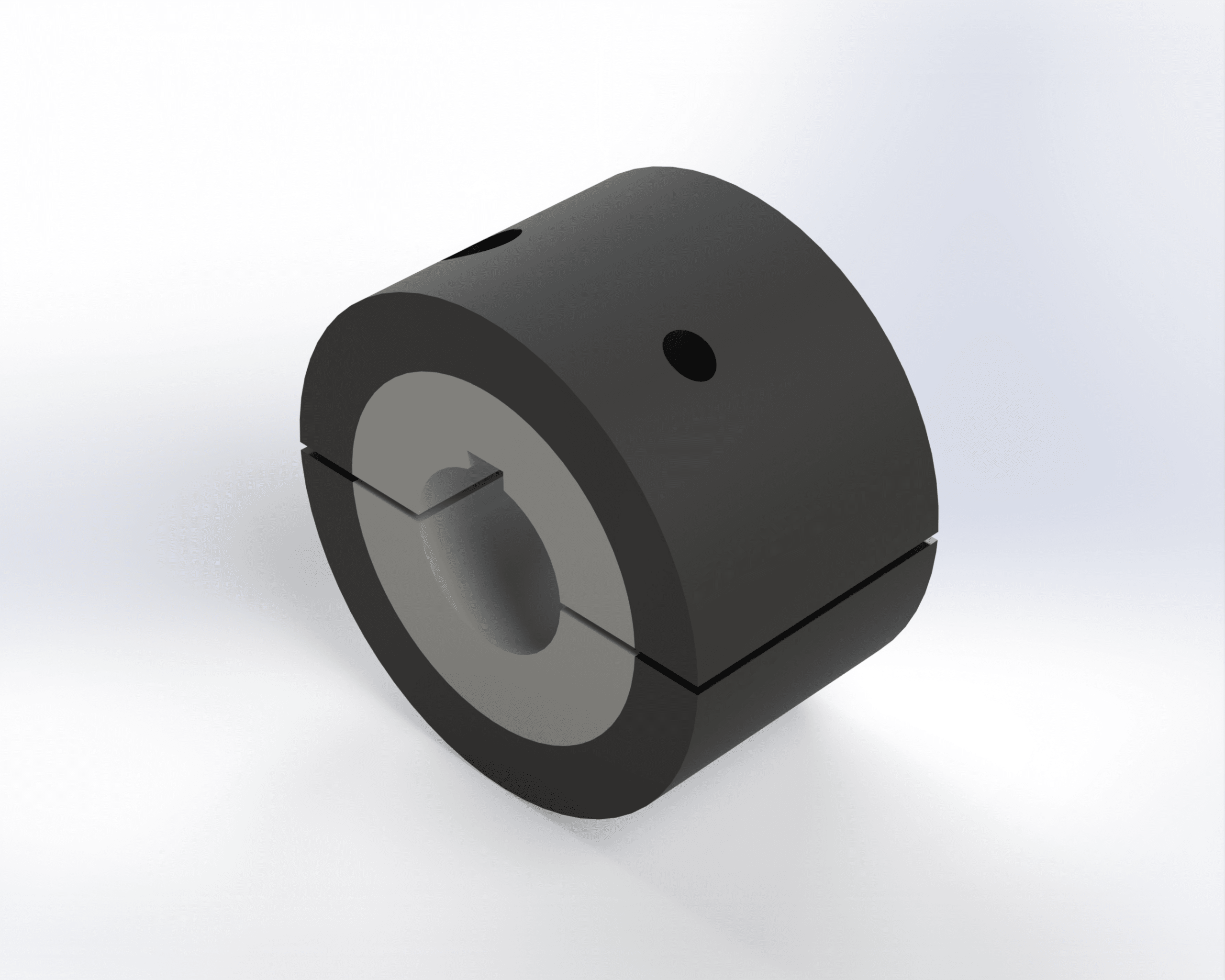

DRBRR | 3-1/2" | 2-1/8" | 1"-1-7/16" | 1/4"-3/8" |
Steel/Rubber body
|
R40BRRKA5 | 4" | 2-1/8" | 1" | 1/4" |
| R40BRRKG5 | 4" | 2-1/8" | 1-3/16" | 1/4" | |

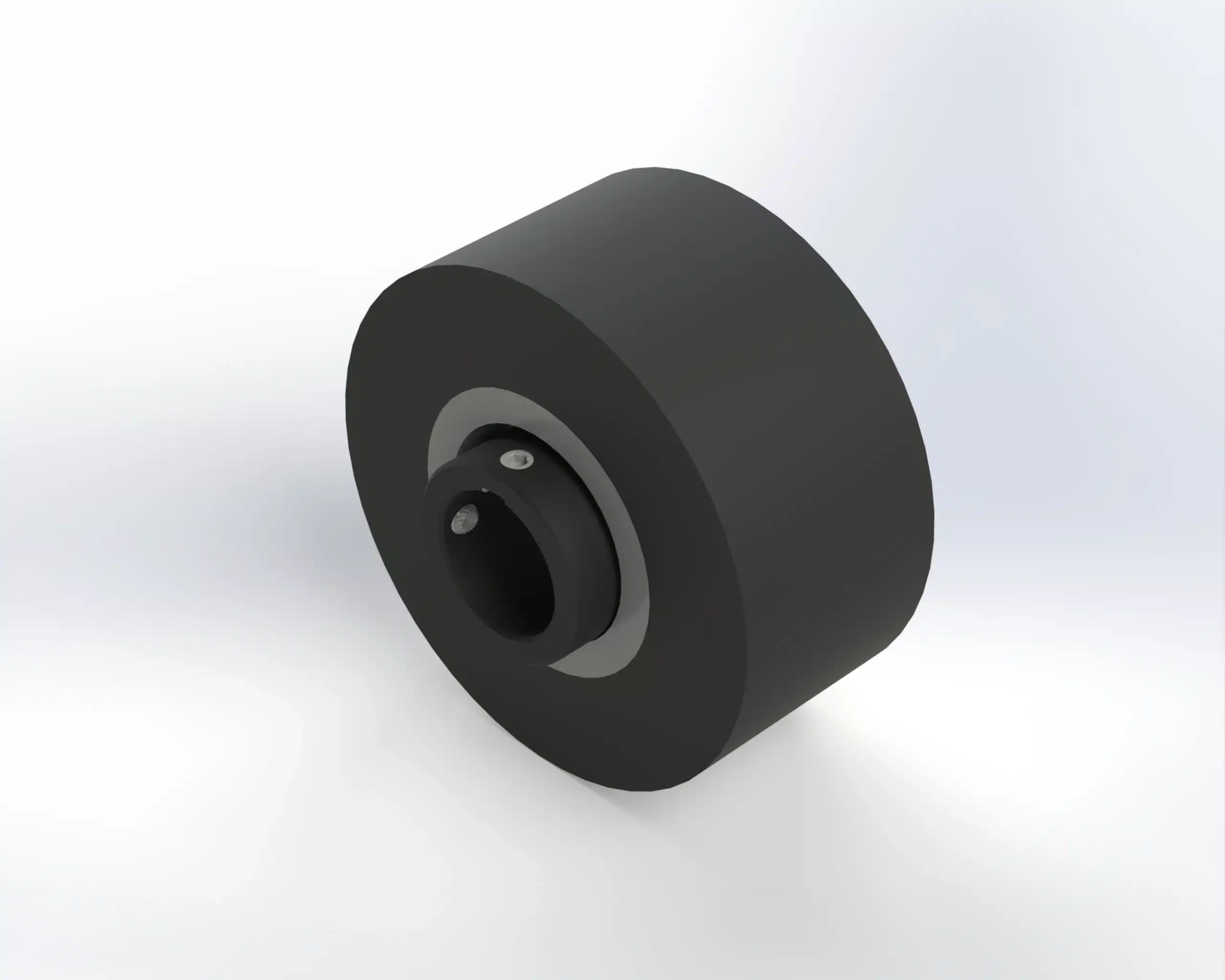

| R40BRRKB5 | 4" | 2-1/8" | 1-1/4" | 1-4" | |
| R40BRRKC6 | 4" | 2-1/8" | 1-3/8" | 5/16" | |
| R40BRRKH4 | 4" | 2-1/8" | 1-7/16" | 3/8" | |
Steel/Rubber body
|
R45BRRKA5 | 4-1/2" | 2-1/8" | 1" | 1/4" |
| R45BRRKG5 | 4-1/2" | 2-1/8" | 1-3/16" | 1/4" | |
| R45BRRKB5 | 4-1/2" | 2-1/8" | 1-1/4" | 1-4" | |
| R45BRRKC6 | 4-1/2" | 2-1/8" | 1-3/8" | 5/16" | |
| R45BRRKH4 | 4-1/2" | 2-1/8" | 1-7/16" | 3/8" | |
Steel/Rubber body
|
R5RRDRA5 | 5" | 1-1/2" | 1" | 1/4" |

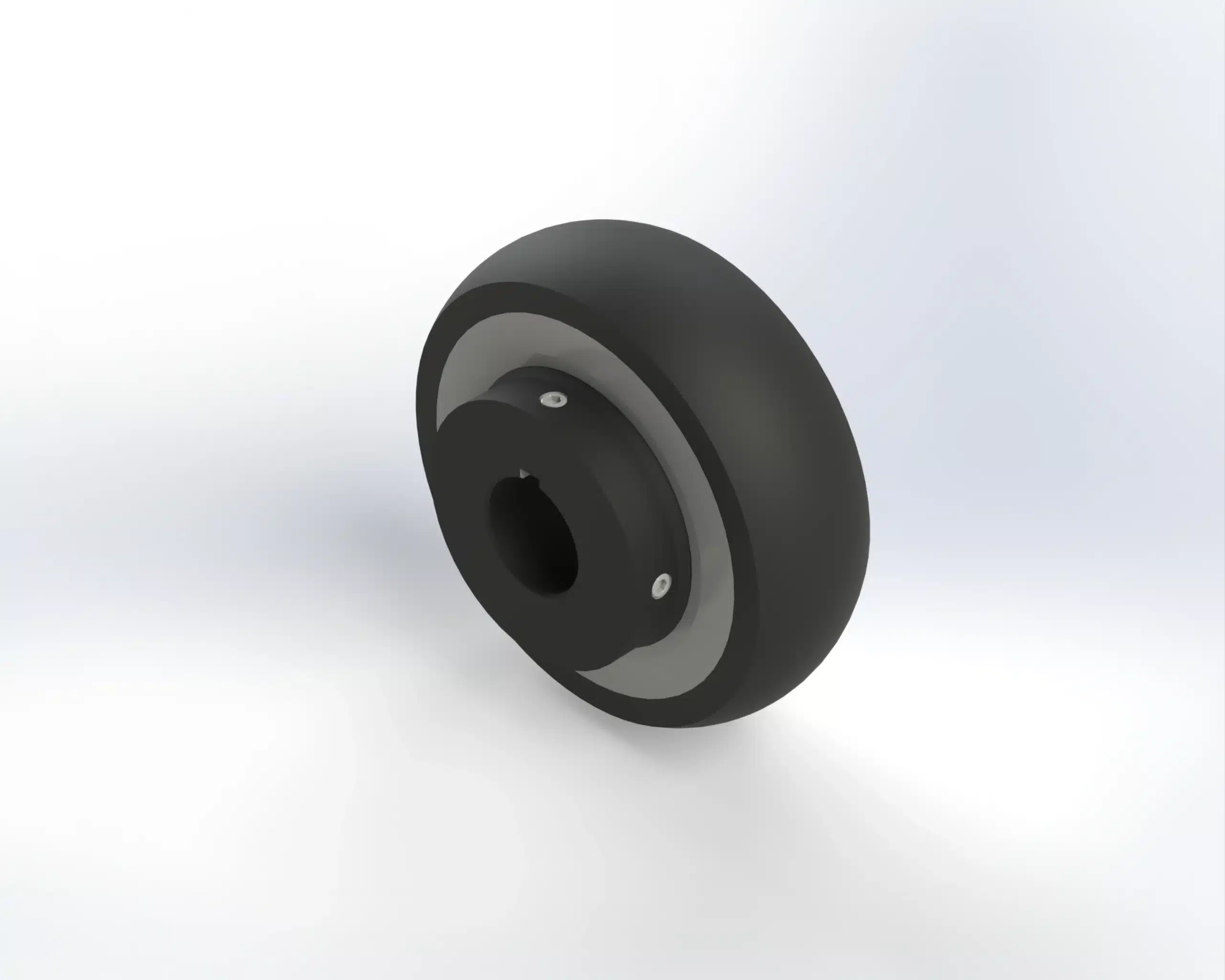

| R5RRDRG5 | 5" | 1-1/2" | 1-3/16" | 1/4" | |
| R5RRDRB5 | 5" | 1-1/2" | 1-1/4" | 1-4" | |
| R5RRDRE4 | 5" | 1-1/2" | 2" | 3/8" | |
Steel/Rubber body
|
R652RKA5 | 6-9/16" | 2-1/4" | 1" | 1/4" |
| R652RKG5 | 6-9/16" | 2-1/4" | 1-3/16" | 1/4" | |
| R652RKB5 | 6-9/16" | 2-1/4" | 1-1/4" | 1-4" | |

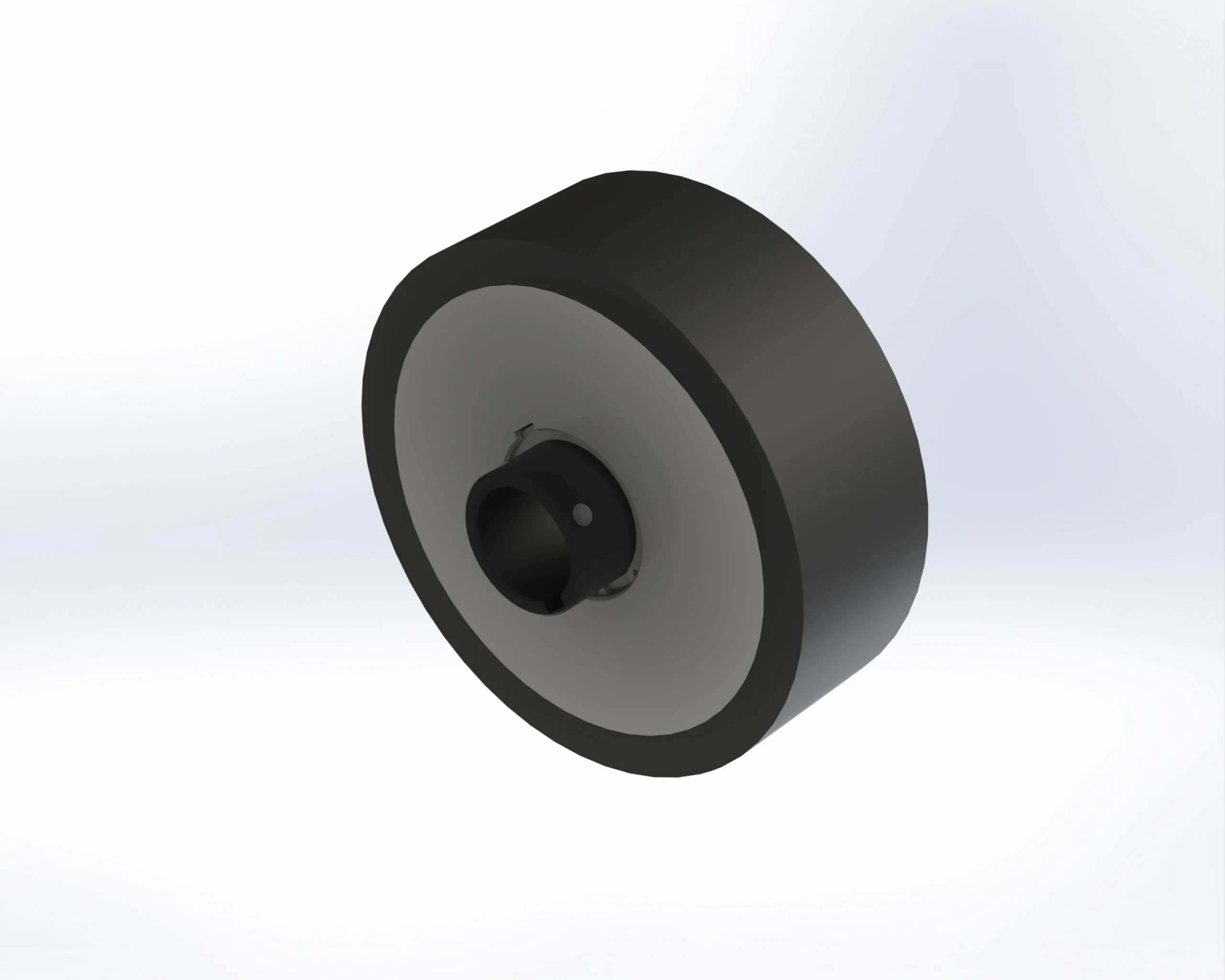

| R652RKC6 | 6-9/16" | 2-1/4" | 1-3/8" | 5/16" | |
| R652RKH4 | 6-9/16" | 2-1/4" | 1-7/16" | 3/8" | |
Steel/Rubber body/Split
|

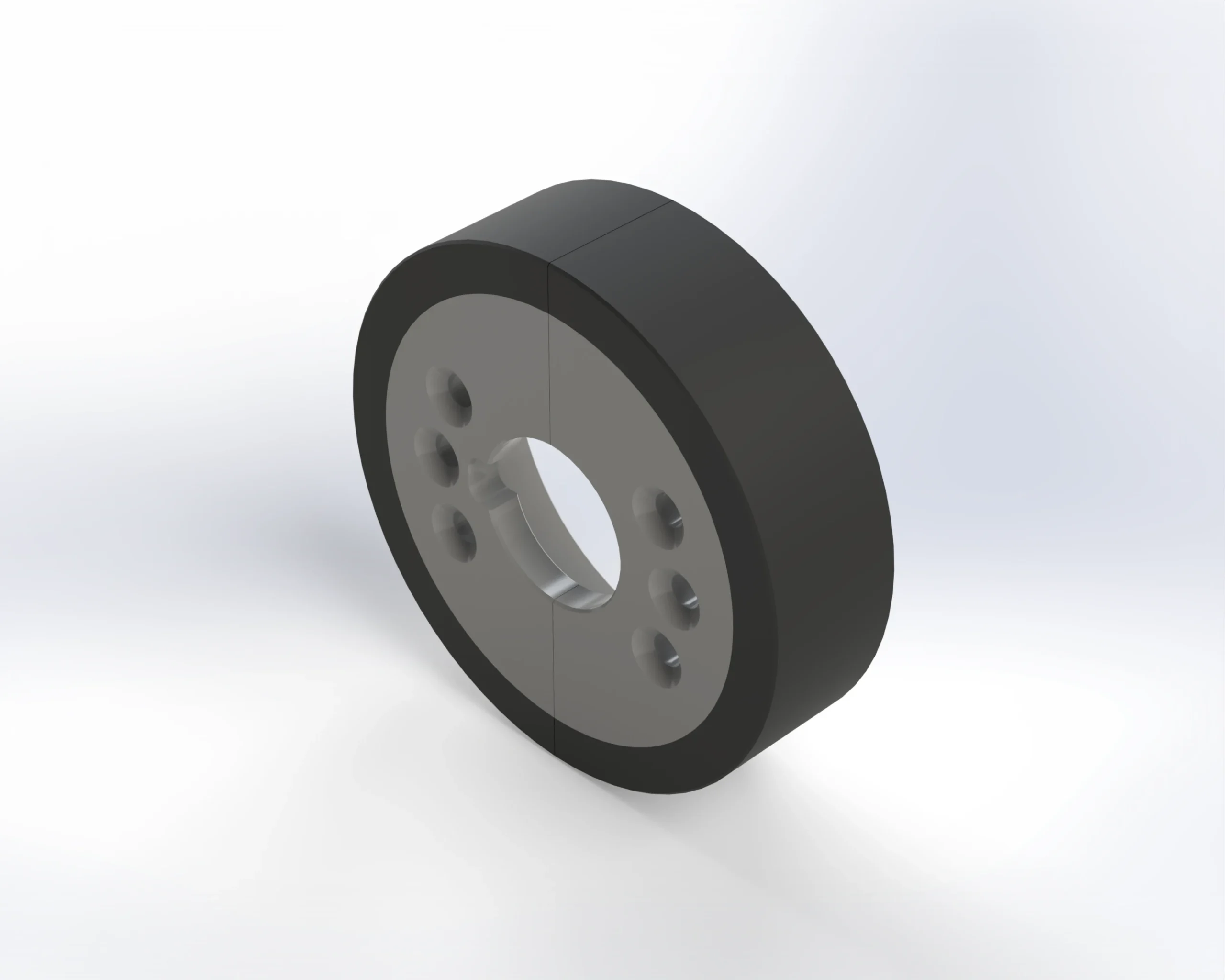

DR6517R | 6-9/16" | 1-3/4" | 1"-2" | 1/4" - 1/2" |
Steel/Rubber body/Split
|

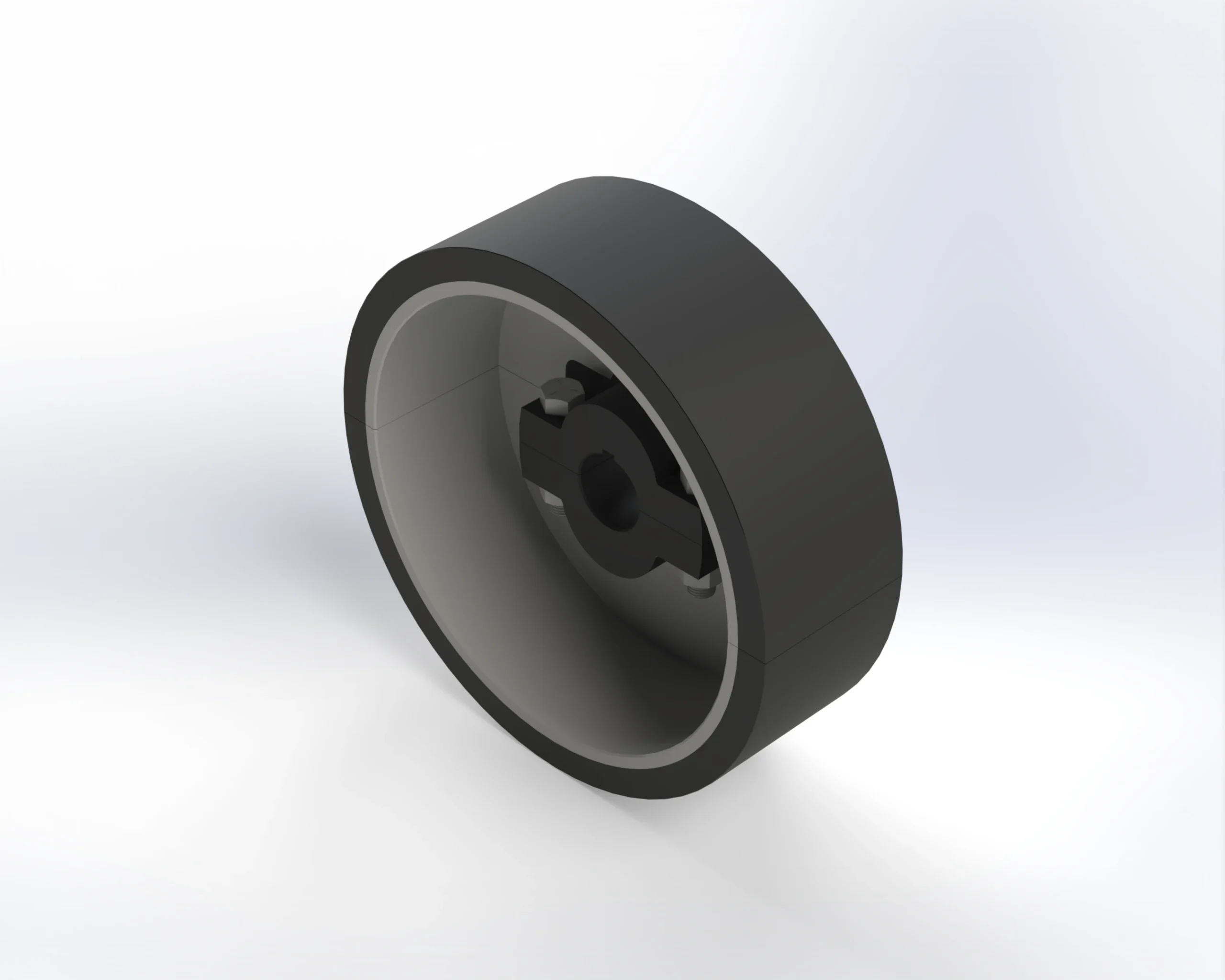

R929RSB5 | 9" | 3" | 1-1/4" | 1/4" |
| R929RSH4 | 9" | 3" | 1-7/16" | 3/8" | |
| R929RSN4 | 9" | 3" | 1-1/2" | 3/8" | |
| R929RSE1 | 9" | 3" | 2" | 1/2" | |
