DOUBLE PITCH ROLLER CHAIN SPROCKETS


Product Guide

Black Ace Double Pitch Roller Chain Sprockets are manufactured with the highest integrity. You will realize value, as these sprockets are flame-cut and machined with the highest precision available on the market.

  • ANSI Standard Torch Profiles
  • A – B – C Hub Types
    • A Type (no hub) typically used in weld-on applications.
    • B Type (hub on one side) used in applications where clearance width is narrow. More economical than C Type.
    • C Type (hub on both sides) used in applications where B Type is not wide enough to withstand torques produced by drive.

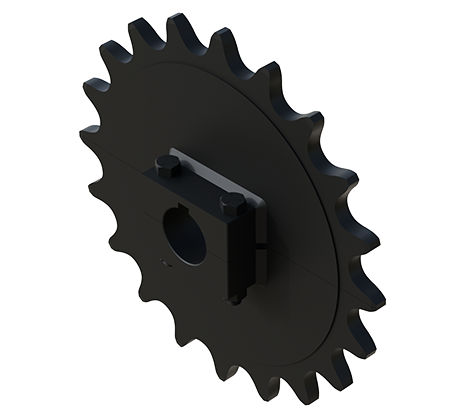

  • Split Style Construction – Once you use a Split Sprocket, you may never want to use a setscrew mount style again. Removal or installation is a breeze. Can be used in virtually all applications. An additional benefit to Black Ace’s split sprockets is that the shaft/keyway security is much tighter than a typical setscrew mount.
  • Hardening Available – Flame hardening of sprockets is available as an option.
SPROCKET SERIES
2062 2082 2102 2122 2162
CHAIN PITCH (INCHES)
1.5 2 2.5 3 4
Chain Roller Diameter
0.875" 1.125" 1.563" 1.750" 2.250"
Plate Thickness
7/16" 9/16" 11/16" 15/16" 1-5/32"
Chain Designations
2062 – 2062H 2082 – 2082H 2102 – 2102H 2122 – 2122H 2162 – 2162H
NUMBER OF TEETH
PITCH DIAMETERS
8 3.92 5.23 6.53 7.84 10.45
9 4.39 5.85 7.31 8.77 11.70
10 4.85 6.47 8.09 9.71 12.94
11 5.32 7.10 8.87 10.65 14.20
12 5.80 7.73 9.66 11.59 15.45
13 6.27 8.36 10.45 12.54 16.71
14 6.74 8.99 11.24 13.48 17.98
15 7.21 9.62 12.02 14.43 19.24
16 7.69 10.25 12.81 15.38 20.50
17 8.16 10.88 13.61 16.33 21.77
18 8.64 11.52 14.40 17.28 23.04
19 9.11 12.15 15.19 18.23 24.30
20 9.59 12.79 15.98 19.18 25.57
