Shaker Body
|
# of Points
|
Pitch
|
Apprx. Vertical Movement
|
Action
|
Bearing
|
Standoff Length
|
Standoff DIA
|
Through Hole
|
|
---|---|---|---|---|---|---|---|---|---|
|
H2P156A | 2 | 1.56" (40MM) | 1-3/8" | A | 1 BGAS | N/A | N/A | N/A |
H2P156A/BRG | 2 | 1.56" (40MM) | 1-3/8" | A | 1 BGAS | N/A | N/A | N/A | |
H2P156AB1 | 2 | 1.56" (40MM) | 1-3/8" | A | 1 BGAS | 0.14 | 1-1/8" | 1/2" | |
H2P156AB2 | 2 | 1.56" (40MM) | 1-3/8" | A | 1 BGAS | 0.14 | 1-1/2" | 5/8" | |
H2P156AD1 | 2 | 1.56" (40MM) | 1-3/8" | A | 1 BGAS | 3.04 | 1-1/2" | 1/2" | |
H2P156AD2 | 2 | 1.56" (40MM) | 1-3/8" | A | 1 BGAS | 3.04 | 1-1/2" | 5/8" | |
H2P156AL1 | 2 | 1.56" (40MM) | 1-3/8" | A | 1 BGAS | 1.09 | 1-1/2" | 1/2" | |
H2P156AO1 | 2 | 1.56" (40MM) | 1-3/8" | A | 1 BGAS | 1.34 | 1-1/2" | 1/2" | |

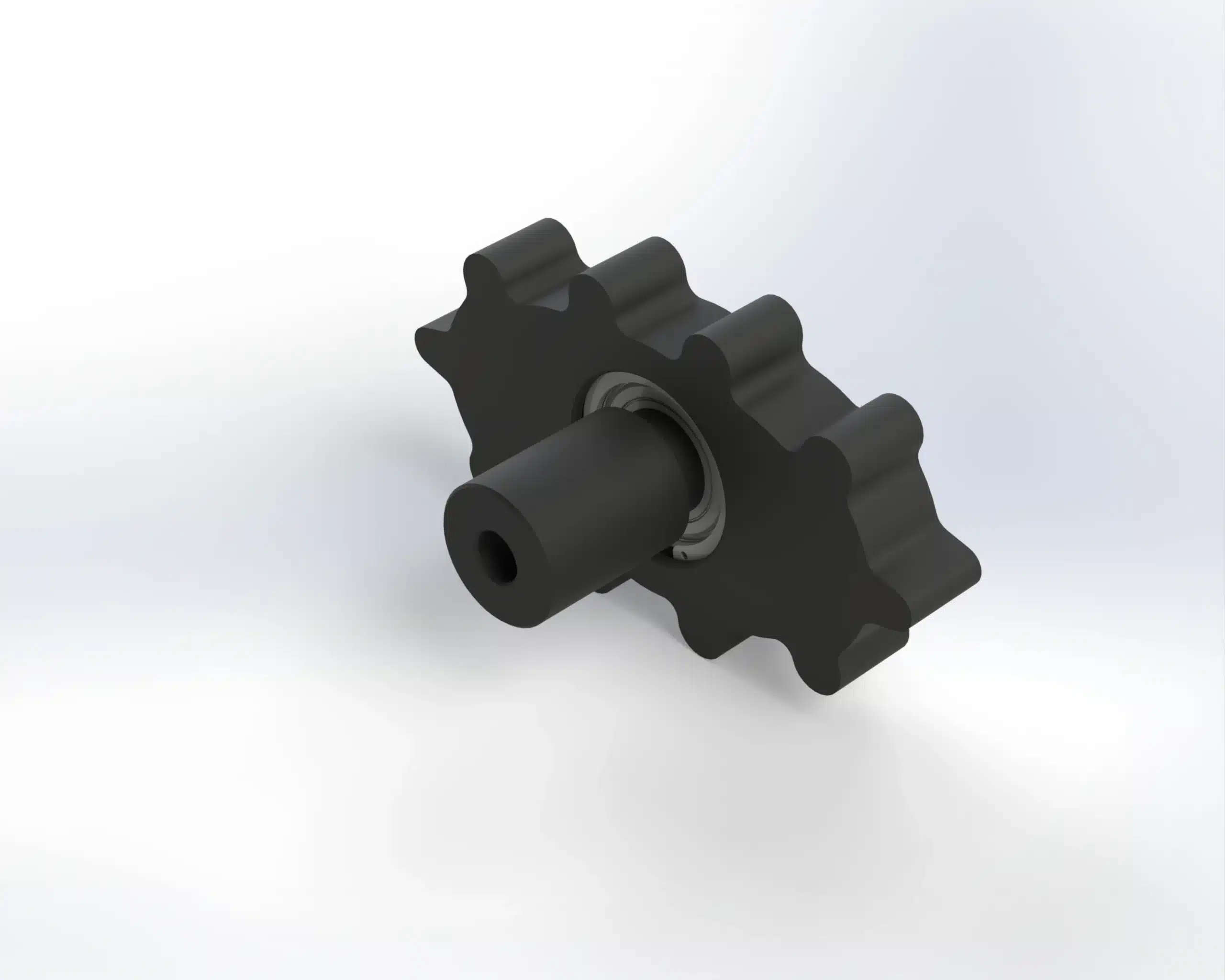

H2P156AY1 | 2 | 1.56" (40MM) | 1-3/8" | A | 1 BGAS | 2.04 | 1-1/2" | 1/2" | |
H2P156AY2 | 2 | 1.56" (40MM) | 1-3/8" | A | 1 BGAS | 2.04 | 1-1/2" | 5/8" | |
|
H3PSGA | 3 | UP TO 2.00" (50MM) | 1-9/16" | A | 1 BGAS | N/A | N/A | N/A |
H3PSGA/BRG | 3 | UP TO 2.00" (50MM) | 1-9/16" | A | 1 BGAS | N/A | N/A | N/A | |
H3PSGAB1 | 3 | UP TO 2.00" (50MM) | 1-9/16" | A | 1 BGAS | 0.13 | 1-1/8" | 1/2" | |
H3PSGAB2 | 3 | UP TO 2.00" (50MM) | 1-9/16" | A | 1 BGAS | 0.13 | 1-1/8" | 5/8" | |
H3PSGAD1 | 3 | UP TO 2.00" (50MM) | 1-9/16" | A | 1 BGAS | 3.06 | 1-1/2" | 1/2" | |
H3PSGAD2 | 3 | UP TO 2.00" (50MM) | 1-9/16" | A | 1 BGAS | 3.06 | 1-1/2" | 5/8" | |
H3PSGAL2 | 3 | UP TO 2.00" (50MM) | 1-9/16" | A | 1 BGAS | 1.11 | 1-1/2" | 5/8" | |
H3PSGAW2 | 3 | UP TO 2.00" (50MM) | 1-9/16" | A | 1 BGAS | 0.20 | 1-3/8" | 5/8" | |
H3PSGAY1 | 3 | UP TO 2.00" (50MM) | 1-9/16" | A | 1 BGAS | 2.06 | 1-1/2" | 1/2" | |
H3PSGAY2 | 3 | UP TO 2.00" (50MM) | 1-9/16" | A | 1 BGAS | 2.06 | 1-1/2" | 5/8" | |
|
H4P45A | 4 | 1.75" (45MM) | 5/8" | M | 1 BGAS | N/A | N/A | N/A |
H4P45MA/BRG | 4 | 1.75" (45MM) | 5/8" | M | 1 BGAS | N/A | N/A | N/A | |
H4P45MAD2 | 4 | 1.75" (45MM) | 5/8" | M | 1 BGAS | 3.02 | 1-1/2" | 5/8" | |
H4P45MAH2 | 4 | 1.75" (45MM) | 5/8" | M | 1 BGAS | 2.37 | 1-1/2" | 5/8" | |
H4P45MAO2 | 4 | 1.75" (45MM) | 5/8" | M | 1 BGAS | 1.44 | 1-1/2" | 5/8" | |
H4P45MAY1 | 4 | 1.75" (45MM) | 5/8" | M | 1 BGAS | 2.05 | 1-1/2" | 1/2" | |
H4P45MAY2 | 4 | 1.75" (45MM) | 5/8" | M | 1 BGAS | 2.05 | 1-1/2" | 5/8" | |
|
H4P56MA | 4 | 2.25" (56 MM) | 7/8" | M | 1 OR 2 BGAS | (N/A | N/A | N/A |
H4P56MA/BRG | 4 | 2.25" (56 MM) | 7/8" | M | 1 OR 2 BGAS | N/A | N/A | N/A | |
H4P56MAB2 | 4 | 2.25" (56 MM) | 7/8" | M | 1 OR 2 BGAS | 0.09 | 1-1/8" | 5/8" | |
H4P56MAD2 | 4 | 2.25" (56 MM) | 7/8" | M | 1 OR 2 BGAS | 3.02 | 1-1/2" | 5/8" | |
H4P56MAY1 | 4 | 2.25" (56 MM) | 7/8" | M | 1 OR 2 BGAS | 2.02 | 1-1/2" | 1/2" | |
H4P56MAY2 | 4 | 2.25" (56 MM) | 7/8" | M | 1 OR 2 BGAS | 2.02 | 1-1/2" | 5/8" | |
|
HR21MA | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGBE | N/A | N/A | N/A |
HR21MA-1 | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGBE | N/A | N/A | N/A | |
HR21MA/BRG | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGBE | N/A | N/A | N/A | |
HR21MAD1 | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGBE | 3.04 | 1-1/2" | 1/2" | |
HR21MAD2 | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGBE | 3.04 | 1-1/2" | 5/8" | |
HR21MAO2 | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGBE | 1.43 | 1-1/2" | 5/8" | |
HR21MAY1 | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGBE | 2.05 | 1-1/2" | 1/2" | |
HR21MAY2 | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGBE | 2.05 | 1-1/2" | 5/8" | |
|

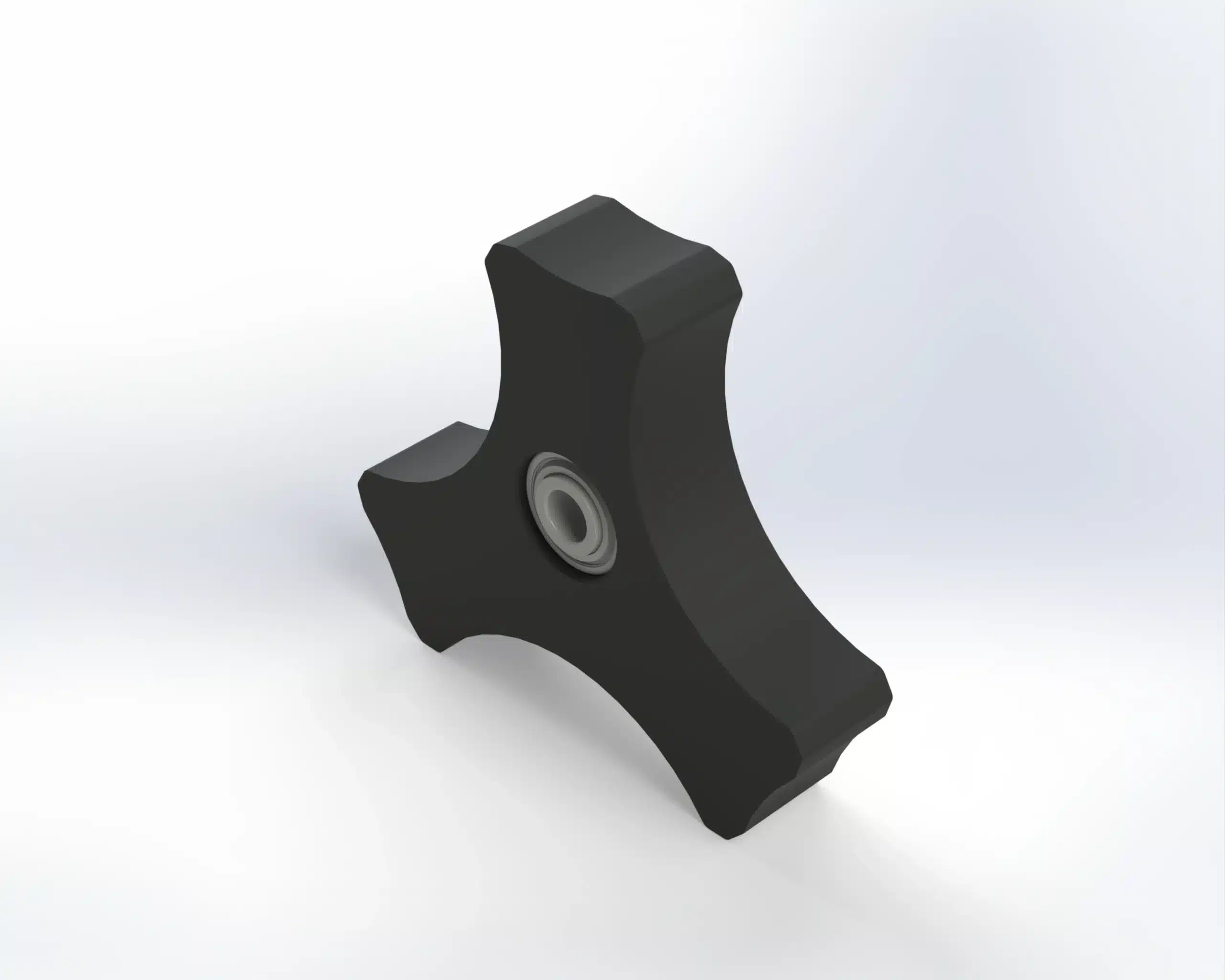

SR21MU | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGBE | N/A | N/A | N/A |
|
HR21DA | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGAS | N/A | N/A | N/A |
HR21DA/BRG | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGAS | N/A | N/A | N/A | |
HR21DAB2 | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGAS | 0.13 | 1-1/2" | 5/8" | |
HR21DABD2 | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGAS | 0.70 | 1-1/8" | 5/8" | |
HR21DAEB2 | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGAS | 2.54 | 1-1/2" | 5/8" | |
HR21DALLB2 | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGAS | 0.80 | 1-1/8" OR 1-1/2" | 5/8" | |
HR21DAUAB1 | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGAS | 1.54 | 1-1/8" OR 1-1/2" | 1/2" | |
HR21DAUAB2 | 3 | UP TO 2.5" (56MM) | 1-3/4" | A | 2 BGAS | 1.54 | 1-1/8" OR 1-1/2" | 5/8" |
BGA – A 52MM (6205) Bearing used in high-speed applications
BGAS – A 52MM (6205) Bearing used in low to moderate speed applications where high contamination is present
BGF – A 52MM Collar locking bearing used in low to moderate speed applications where moderate contamination is present (used only for 1" shaft mounts)
BGBS – A 40MM (6203) Bearing used in low to moderate speed applications where high contamination is present
BGB – A 40MM (6203) Bearing used in high-speed applications
NB21 – A Fixed Bearing used in underwater applications
NRT – An auxiliary bearing seal that provides excellent protection in high contamination areas to greatly improve bearing life. The NRT seal has a low friction coefficient, providing low bearing drag.
