TAPPED BASE PILLOW BLOCK


Product Guide
Part Number
Outer Bearing Race
A
Total Width
B
Thickness
C
Height
D
Bolt Hole Spacing
E
Center Height
F
Tapped Base
G
Zerk Size
H
Availability
2945G BH52R 52MM 3" 1-1/4" 2-13/16" 2" 1-7/16" 3/8-16NC N/A MADE TO ORDER

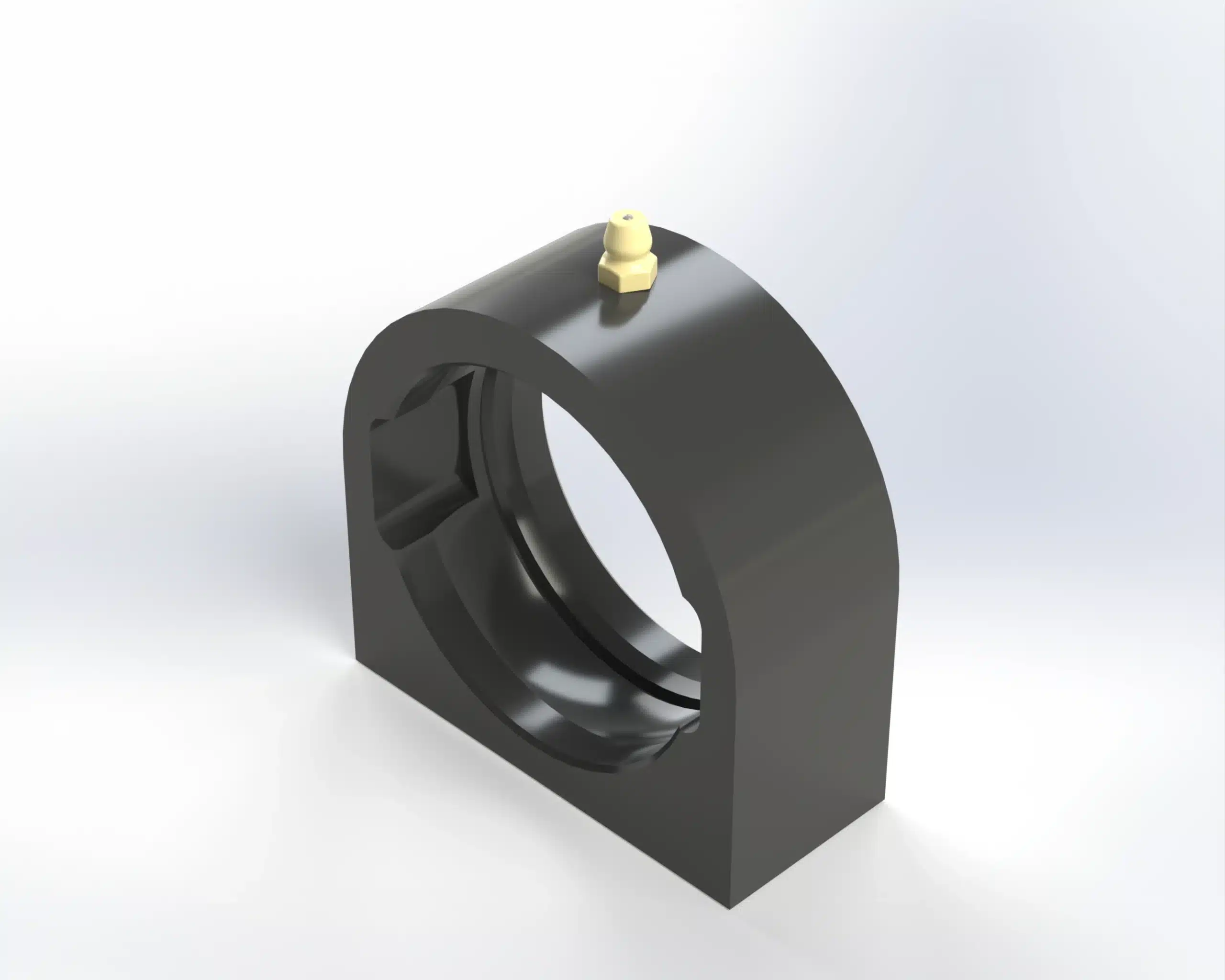

2945G BH62R 62MM 3" 1-1/4" 3-1/16" 2-1/2" 1-7/16" 3/8-16NC 1/4-28NF MADE TO ORDER

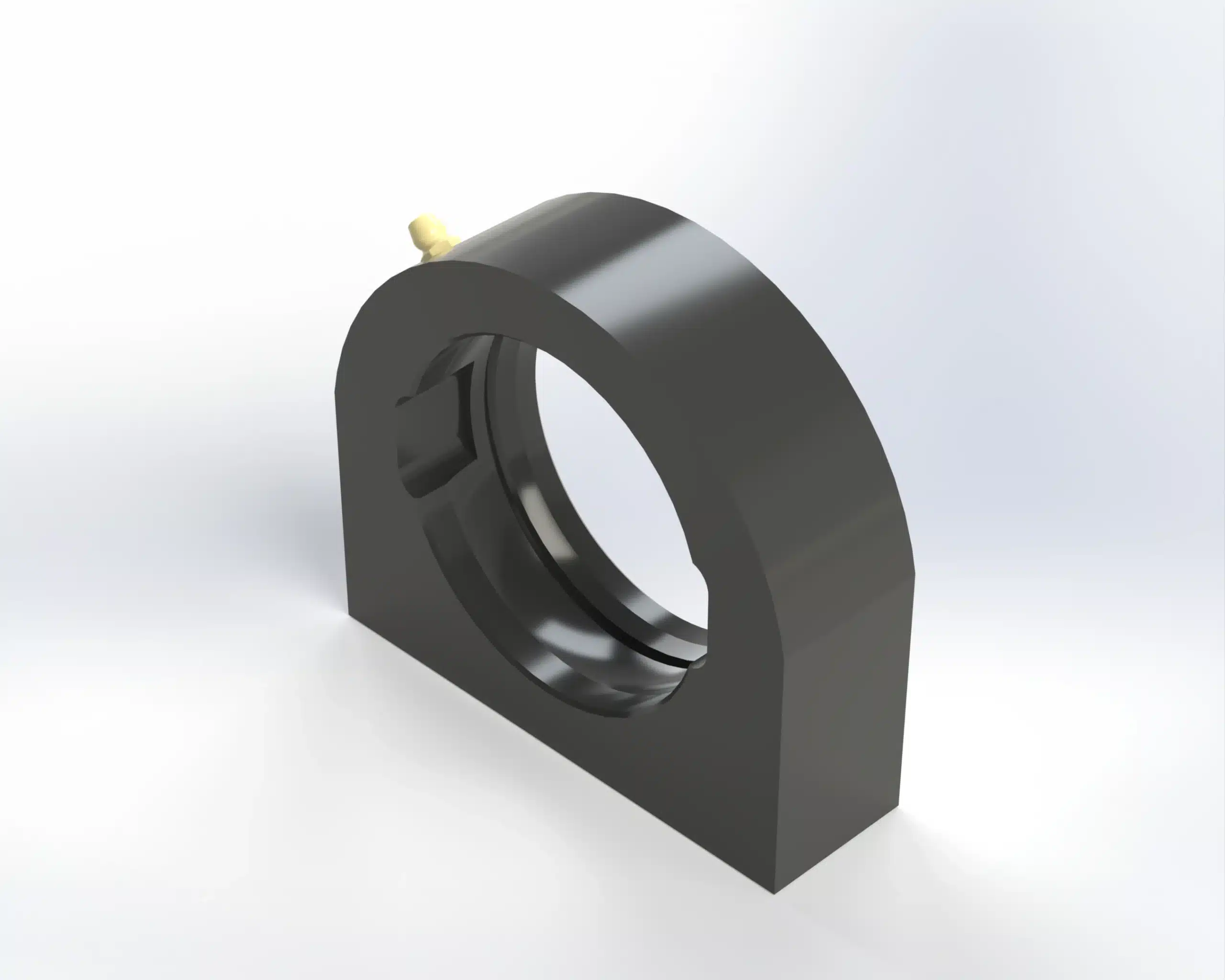

2945G BH72RC 72MM 4-1/4" 1-1/4" 3-3/4" 3-1/4" 1-7/8" 1/2-13NC 1/4-28NF MADE TO ORDER
2945G BH72RI 72MM 4-1/4" 1-1/4" 3-3/4" 3-1/4" 1-7/8" 1/2-13NC 1/4-28NF MADE TO ORDER
2945G BH85R 85MM 5" 1-1/2" 4-1/4" 3-3/4" 2-1/8" 1/2-13NC 1/4-28NF MADE TO ORDER

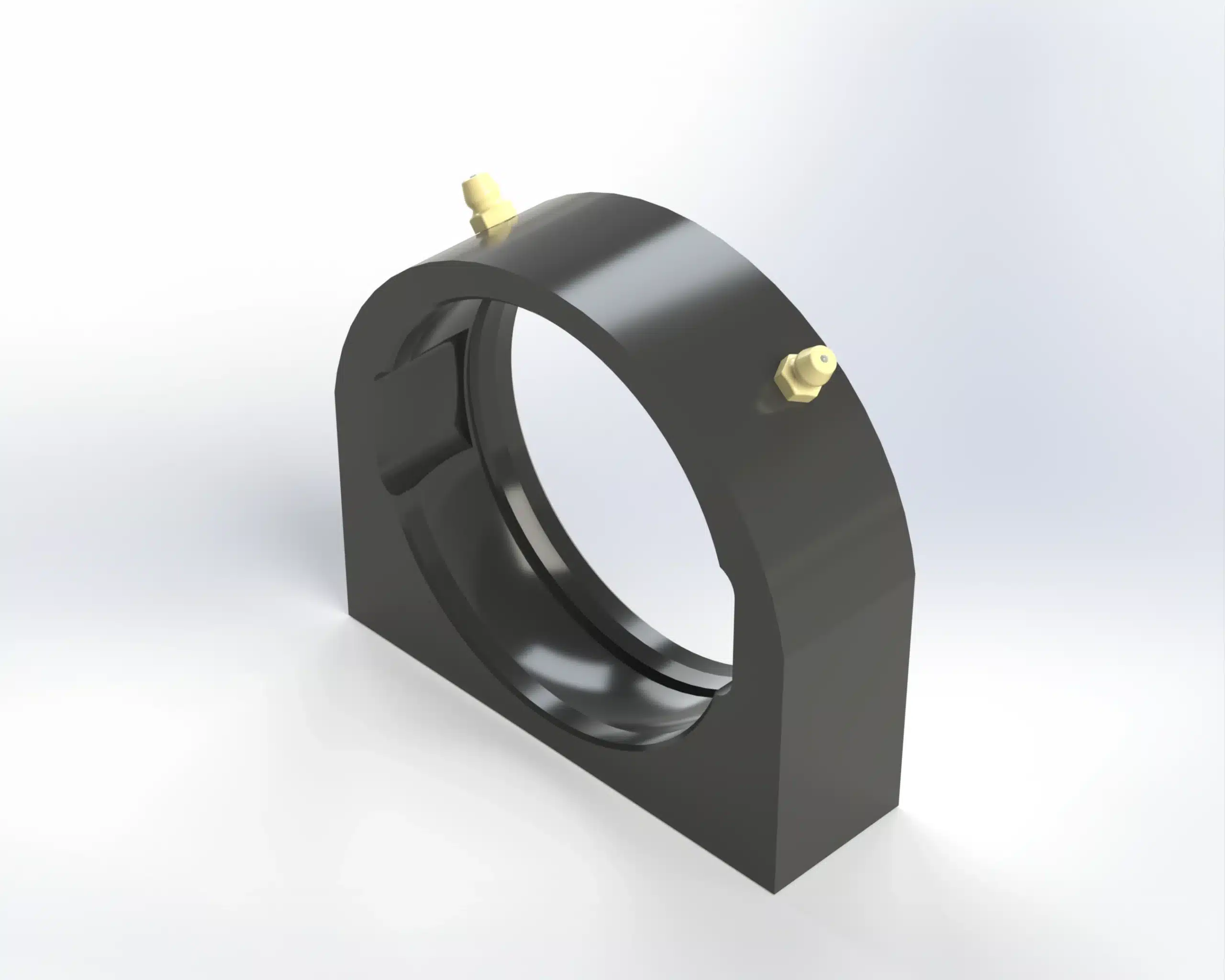

2945G BH85RI 85MM 4-1/4" 1-1/4" 3-3/4" 3-1/4" 1-7/8" 1/2-13NC 1/4-28NF MADE TO ORDER

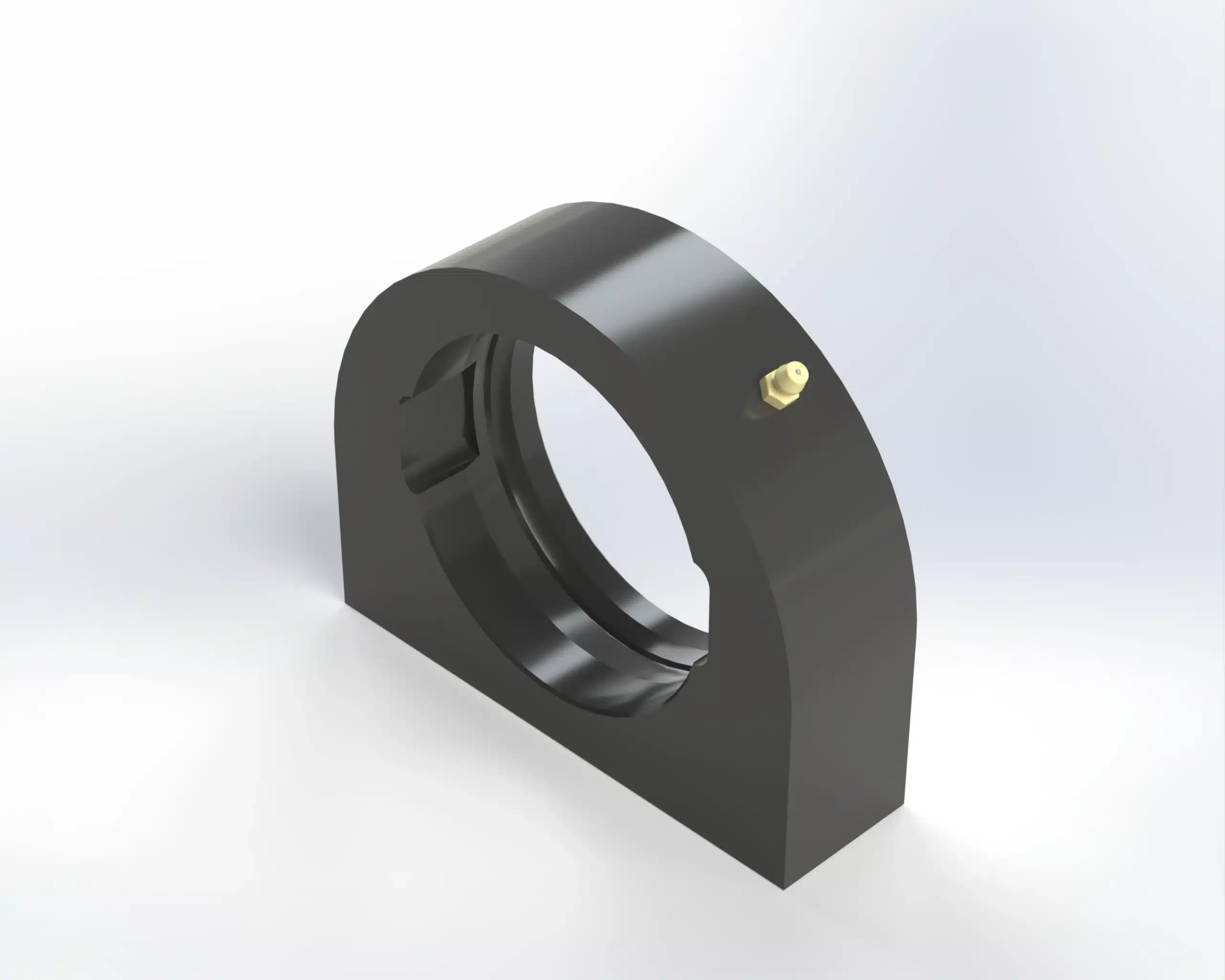

2945G BH90R 90MM 5-7/16" 1-1/2" 4-1/2" 4" 2-1/4" 5/8-11NC 1/4-28NF MADE TO ORDER

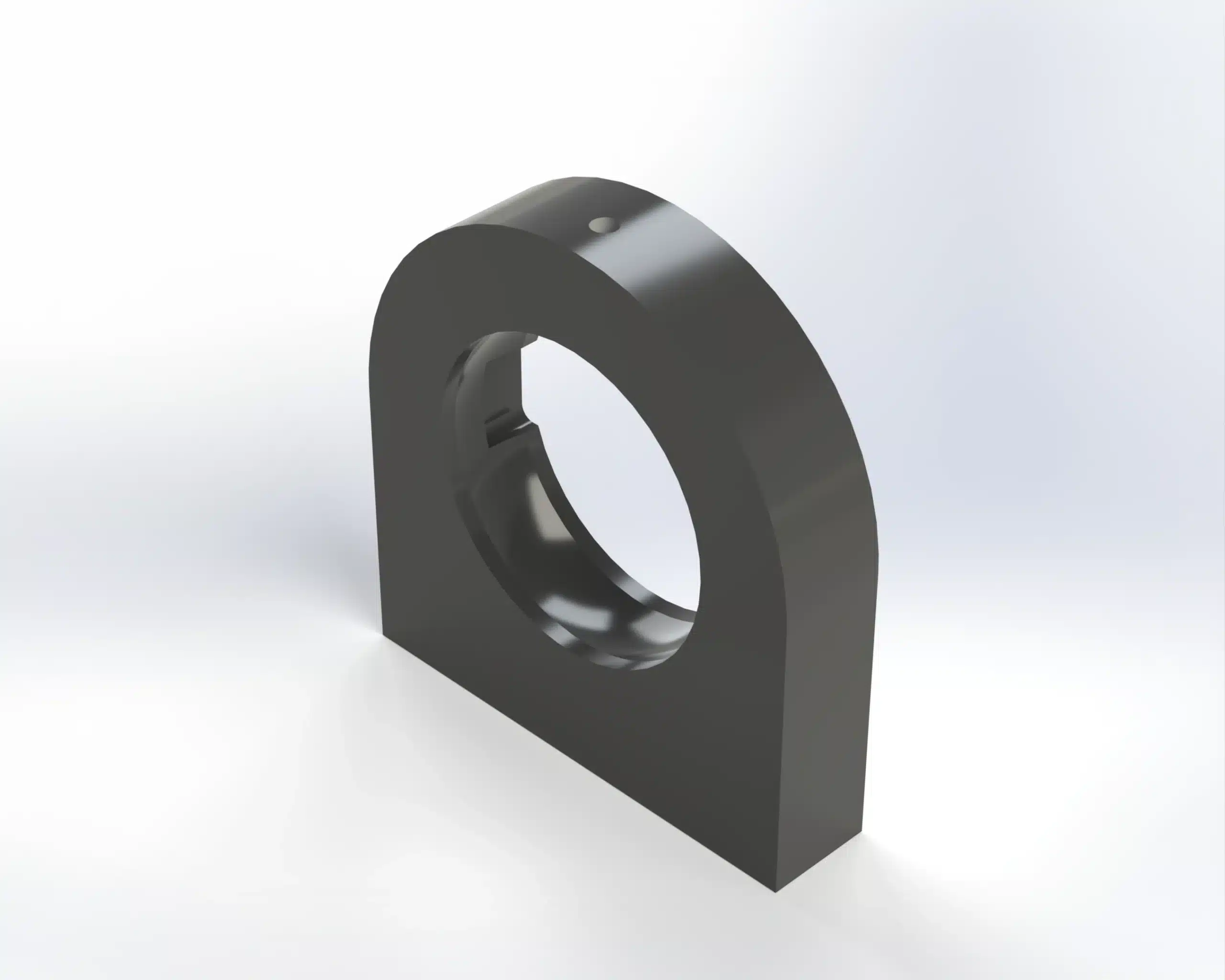

BH110R BH110R 110MM 6-5/8" 1-1/2" 6-3/4" 5-1/4" 3-3/8" 5/8-11NC 1/4-28NF MADE TO ORDER
